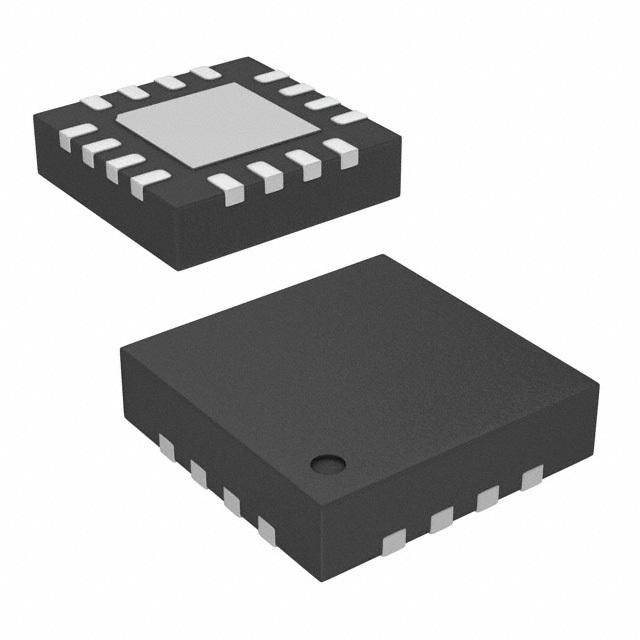

AD5686RACPZ-RL7 Images

AD5686RACPZ-RL7 Images are for reference only, See Product Specifications

AD5686RACPZ-RL7

Part Number AD5686RACPZ-RL7
Manufacturer Analog Devices Inc.
Description IC DAC 16BIT SPI QUAD 16LFCSP
Data sheet AD5686RACPZ-RL7.pdf
Category Integrated Circuits (ICs)
Family Data Acquisition - Digital to Analog Converters (DAC)
Series nanoDAC+®
Request a Quote

Buy the AD5686RACPZ-RL7 Analog Devices Inc. on Chip Source Co., LIMITED,we are Analog Devices Inc. Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the AD5686RACPZ-RL7 within 24 hours,please contact our sales team or send email to sales@hkchipsource.com Hope we can cooperate in the future.

Specifications

Part Status Active
Number of Bits 16
Number of D/A Converters 4
Settling Time 8µs
Output Type Voltage - Buffered
Differential Output No
Data Interface SPI, DSP
Reference Type External, Internal
Voltage - Supply, Analog 2.7 V ~ 5.5 V
Voltage - Supply, Digital 1.8 V ~ 5.5 V
INL/DNL (LSB) ±2, ±1 (Max)
Architecture String DAC
Operating Temperature -40°C ~ 105°C
Package / Case 16-WFQFN Exposed Pad, CSP
Supplier Device Package 16-LFCSP-WQ (3x3)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email sales@hkchipsource.com or Inquires online
