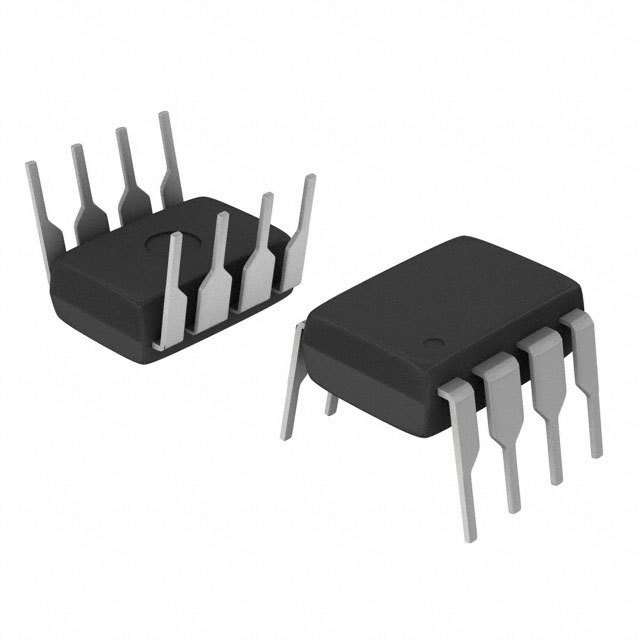

AD8036ANZ Images

AD8036ANZ Images are for reference only, See Product Specifications

AD8036ANZ

Part Number AD8036ANZ
Manufacturer Analog Devices Inc.
Description IC OPAMP VFB 240MHZ 8DIP
Data sheet AD8036ANZ.pdf
Category Integrated Circuits (ICs)
Family Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Series CLAMPIN™
Request a Quote

Buy the AD8036ANZ Analog Devices Inc. on Chip Source Co., LIMITED,we are Analog Devices Inc. Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the AD8036ANZ within 24 hours,please contact our sales team or send email to sales@hkchipsource.com Hope we can cooperate in the future.

Specifications

Part Status Active
Amplifier Type Voltage Feedback
Number of Circuits 1
Output Type -
Slew Rate 1200 V/µs
Gain Bandwidth Product -
-3db Bandwidth 240MHz
Current - Input Bias 4µA
Voltage - Input Offset 2mV
Current - Supply 20.5mA
Current - Output / Channel 70mA
Voltage - Supply, Single/Dual (±) ±3 V ~ 6 V
Operating Temperature -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-PDIP
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email sales@hkchipsource.com or Inquires online
