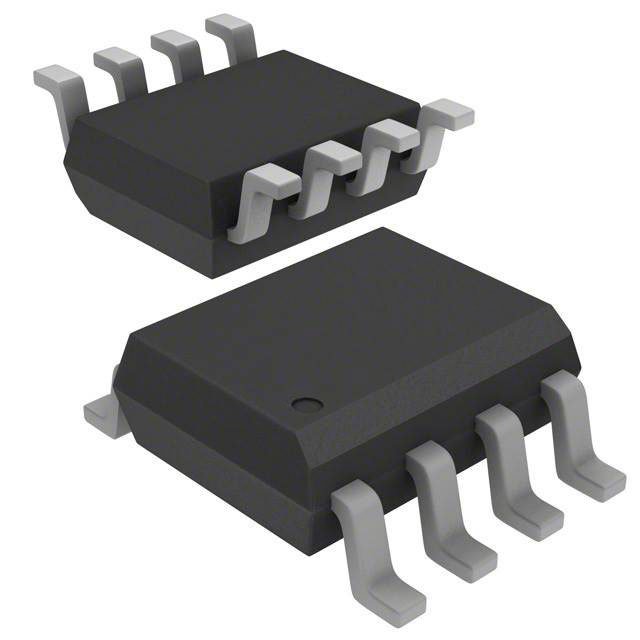

AD820AR-REEL Images

AD820AR-REEL Images are for reference only, See Product Specifications


Part Number AD820AR-REEL
Manufacturer Analog Devices Inc.
Data sheet AD820AR-REEL.pdf
Category Integrated Circuits (ICs)
Family Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Series -
Request a Quote

Buy the AD820AR-REEL Analog Devices Inc. on Chip Source Co., LIMITED,we are Analog Devices Inc. Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the AD820AR-REEL within 24 hours,please contact our sales team or send email to sales@hkchipsource.com Hope we can cooperate in the future.


Part Status Active
Amplifier Type J-FET
Number of Circuits 1
Output Type Rail-to-Rail
Slew Rate 3 V/µs
Gain Bandwidth Product 1.8MHz
-3db Bandwidth 1.9MHz
Current - Input Bias 2pA
Voltage - Input Offset 400µV
Current - Supply 700µA
Current - Output / Channel 20mA
Voltage - Supply, Single/Dual (±) 5 V ~ 36 V, ±2.5 V ~ 18 V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email sales@hkchipsource.com or Inquires online
