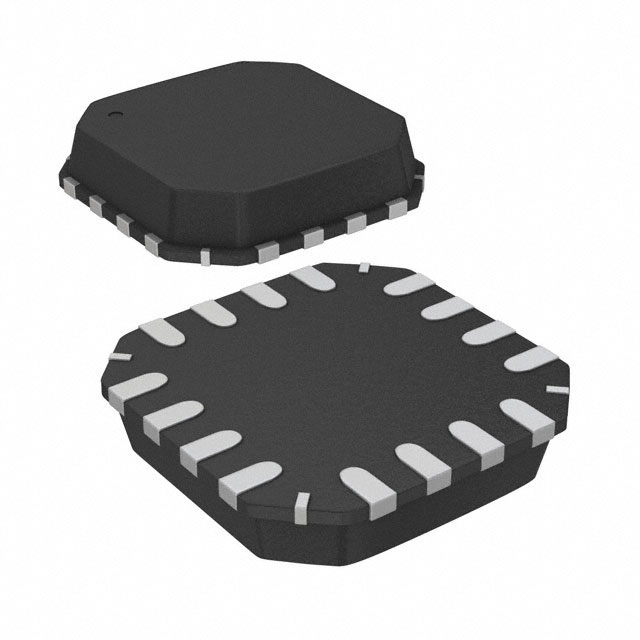

AD8224HBCPZ-R7 Images

AD8224HBCPZ-R7 Images are for reference only, See Product Specifications

AD8224HBCPZ-R7

Part Number AD8224HBCPZ-R7
Manufacturer Analog Devices Inc.
Description IC OPAMP INSTR 1.5MHZ 16LFCSP
Data sheet AD8224HBCPZ-R7.pdf
Category Integrated Circuits (ICs)
Family Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Series -
Request a Quote

Buy the AD8224HBCPZ-R7 Analog Devices Inc. on Chip Source Co., LIMITED,we are Analog Devices Inc. Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the AD8224HBCPZ-R7 within 24 hours,please contact our sales team or send email to sales@hkchipsource.com Hope we can cooperate in the future.

Specifications

Part Status Active
Amplifier Type Instrumentation
Number of Circuits 2
Output Type Rail-to-Rail
Slew Rate 2 V/µs
Gain Bandwidth Product -
-3db Bandwidth 1.5MHz
Current - Input Bias 10pA
Voltage - Input Offset 175µV
Current - Supply 750µA
Current - Output / Channel 15mA
Voltage - Supply, Single/Dual (±) 4.5 V ~ 36 V, ±2.25 V ~ 18 V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 16-VQFN, CSP
Supplier Device Package 16-LFCSP-VQ (4x4)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email sales@hkchipsource.com or Inquires online
