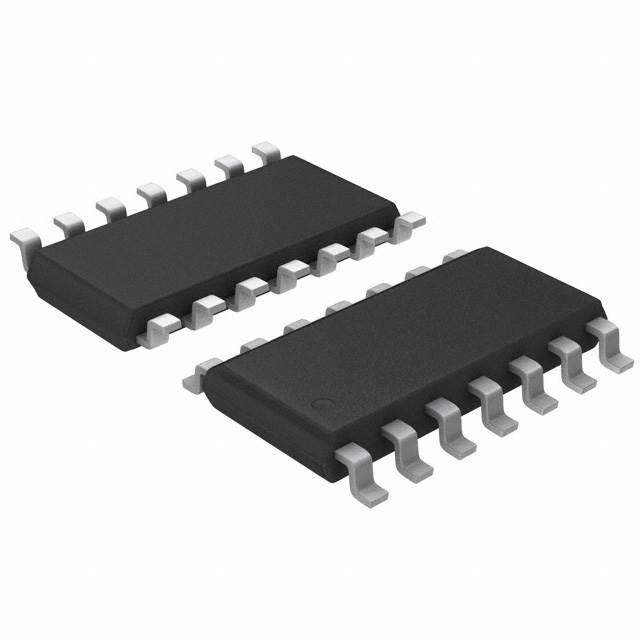

AD824ARZ-14 Images

AD824ARZ-14 Images are for reference only, See Product Specifications

AD824ARZ-14

Part Number AD824ARZ-14
Manufacturer Analog Devices Inc.
Description IC OPAMP JFET 2MHZ RRO 14SOIC
Data sheet AD824ARZ-14.pdf
Category Integrated Circuits (ICs)
Family Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Series -
Request a Quote

Buy the AD824ARZ-14 Analog Devices Inc. on Chip Source Co., LIMITED,we are Analog Devices Inc. Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the AD824ARZ-14 within 24 hours,please contact our sales team or send email to sales@hkchipsource.com Hope we can cooperate in the future.

Specifications

Part Status Active
Amplifier Type J-FET
Number of Circuits 4
Output Type Rail-to-Rail
Slew Rate 2 V/µs
Gain Bandwidth Product 2MHz
-3db Bandwidth 2MHz
Current - Input Bias 4pA
Voltage - Input Offset 500µV
Current - Supply 560µA
Current - Output / Channel 12mA
Voltage - Supply, Single/Dual (±) 3 V ~ 30 V, ±1.5 V ~ 15 V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package 14-SOIC
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email sales@hkchipsource.com or Inquires online
