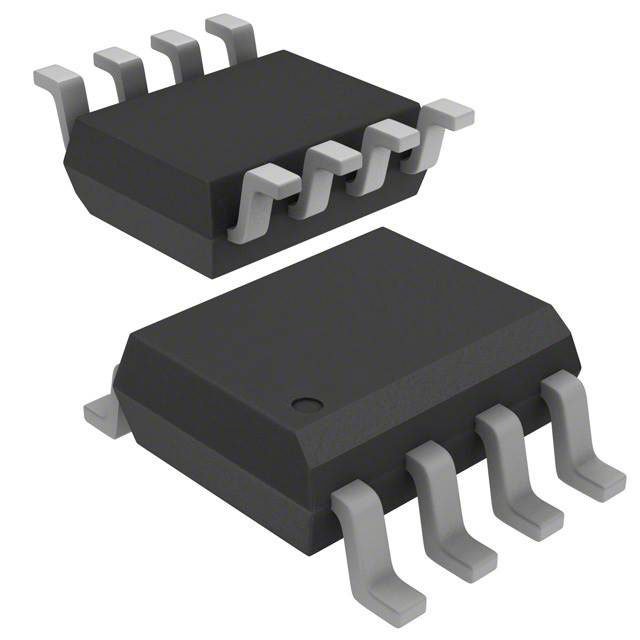

OP284FSZ-REEL7 Images

OP284FSZ-REEL7 Images are for reference only, See Product Specifications


Part Number OP284FSZ-REEL7
Manufacturer Analog Devices Inc.
Description IC OPAMP GP 4.25MHZ RRO 8SOIC
Data sheet OP284FSZ-REEL7.pdf
Category Integrated Circuits (ICs)
Family Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Series -
Request a Quote

Buy the OP284FSZ-REEL7 Analog Devices Inc. on Chip Source Co., LIMITED,we are Analog Devices Inc. Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the OP284FSZ-REEL7 within 24 hours,please contact our sales team or send email to sales@hkchipsource.com Hope we can cooperate in the future.


Part Status Active
Amplifier Type General Purpose
Number of Circuits 2
Output Type Rail-to-Rail
Slew Rate 4 V/µs
Gain Bandwidth Product 4.25MHz
-3db Bandwidth -
Current - Input Bias 80nA
Voltage - Input Offset 175µV
Current - Supply 2.25mA
Current - Output / Channel 10mA
Voltage - Supply, Single/Dual (±) 3 V ~ 36 V, ±1.5 V ~ 18 V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email sales@hkchipsource.com or Inquires online
