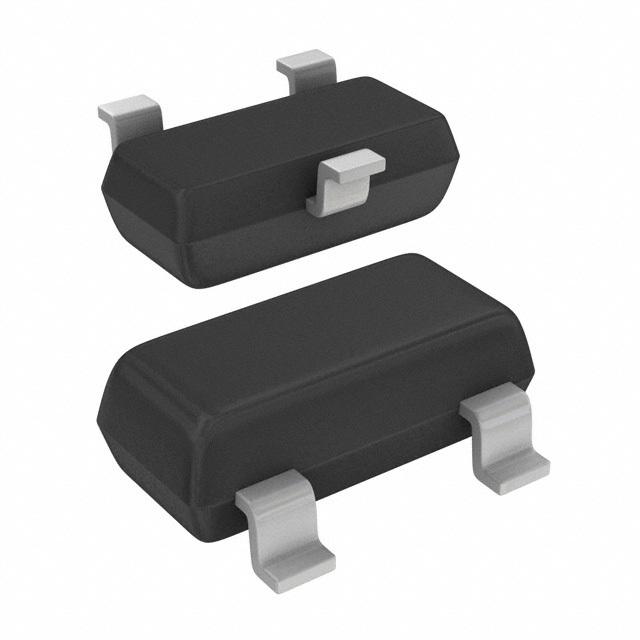

MMBT3904,215 Images

MMBT3904,215 Images are for reference only, See Product Specifications

MMBT3904,215

Part Number MMBT3904,215
Manufacturer Nexperia USA Inc.
Description TRANS NPN 40V 0.2A SOT23
Data sheet MMBT3904,215.pdf
Category Discrete Semiconductor Products
Family Transistors - Bipolar (BJT) - Single
Series Automotive, AEC-Q101
Request a Quote

Buy the MMBT3904,215 Nexperia USA Inc. on Chip Source Co., LIMITED,we are Nexperia USA Inc. Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the MMBT3904,215 within 24 hours,please contact our sales team or send email to sales@hkchipsource.com Hope we can cooperate in the future.

Specifications

Part Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 200mA
Voltage - Collector Emitter Breakdown (Max) 40V
Vce Saturation (Max) @ Ib, Ic 300mV @ 5mA, 50mA
Current - Collector Cutoff (Max) 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 10mA, 1V
Power - Max 250mW
Frequency - Transition 300MHz
Operating Temperature 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package TO-236AB (SOT23)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email sales@hkchipsource.com or Inquires online
