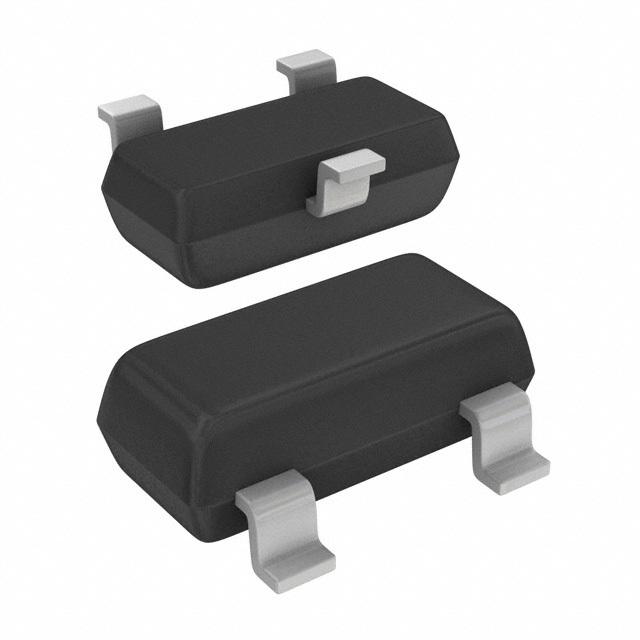

PMBT3906,235 Images

PMBT3906,235 Images are for reference only, See Product Specifications

PMBT3906,235

Part Number PMBT3906,235
Manufacturer Nexperia USA Inc.
Description TRANS PNP 40V 0.2A SOT23
Data sheet PMBT3906,235.pdf
Category Discrete Semiconductor Products
Family Transistors - Bipolar (BJT) - Single
Series Automotive, AEC-Q101
Request a Quote

Buy the PMBT3906,235 Nexperia USA Inc. on Chip Source Co., LIMITED,we are Nexperia USA Inc. Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the PMBT3906,235 within 24 hours,please contact our sales team or send email to sales@hkchipsource.com Hope we can cooperate in the future.

Specifications

Part Status Active
Transistor Type PNP
Current - Collector (Ic) (Max) 200mA
Voltage - Collector Emitter Breakdown (Max) 40V
Vce Saturation (Max) @ Ib, Ic 400mV @ 5mA, 50mA
Current - Collector Cutoff (Max) 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 10mA, 1V
Power - Max 250mW
Frequency - Transition 250MHz
Operating Temperature 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package TO-236AB (SOT23)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email sales@hkchipsource.com or Inquires online
