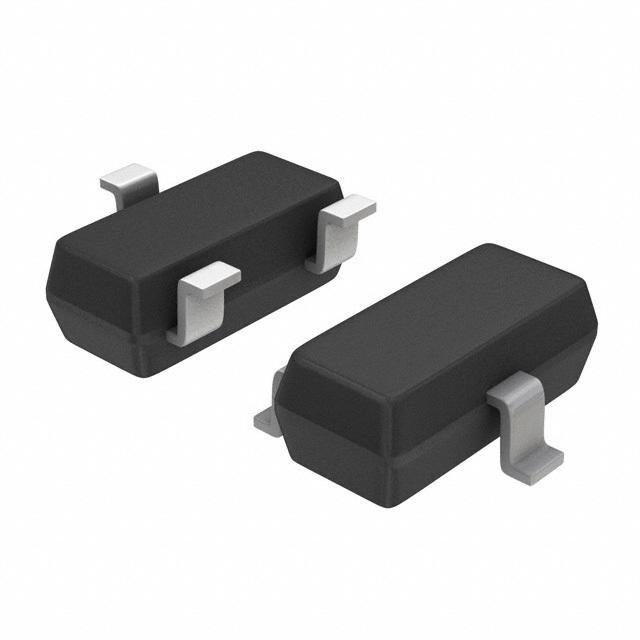

BC817-40LT3G Images

BC817-40LT3G Images are for reference only, See Product Specifications

BC817-40LT3G

Part Number BC817-40LT3G
Manufacturer ON Semiconductor
Description TRANS NPN 45V 0.5A SOT-23
Data sheet BC817-40LT3G.pdf
Category Discrete Semiconductor Products
Family Transistors - Bipolar (BJT) - Single
Series -
Request a Quote

Buy the BC817-40LT3G ON Semiconductor on Chip Source Co., LIMITED,we are ON Semiconductor Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the BC817-40LT3G within 24 hours,please contact our sales team or send email to sales@hkchipsource.com Hope we can cooperate in the future.

Specifications

Part Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 500mA
Voltage - Collector Emitter Breakdown (Max) 45V
Vce Saturation (Max) @ Ib, Ic 700mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 250 @ 100mA, 1V
Power - Max 300mW
Frequency - Transition 100MHz
Operating Temperature -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email sales@hkchipsource.com or Inquires online
