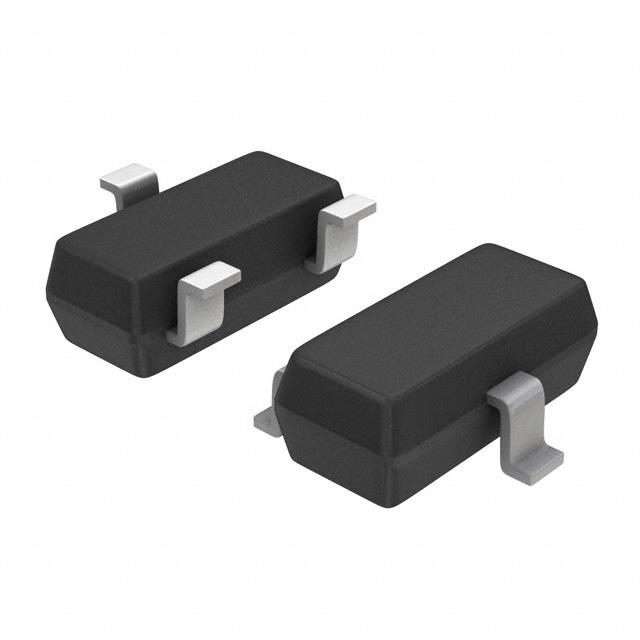

MMBT3904LT3G Images

MMBT3904LT3G Images are for reference only, See Product Specifications

MMBT3904LT3G

Part Number MMBT3904LT3G
Manufacturer ON Semiconductor
Description TRANS NPN 40V 0.2A SOT23
Data sheet MMBT3904LT3G.pdf
Category Discrete Semiconductor Products
Family Transistors - Bipolar (BJT) - Single
Series -
Request a Quote

Buy the MMBT3904LT3G ON Semiconductor on Chip Source Co., LIMITED,we are ON Semiconductor Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the MMBT3904LT3G within 24 hours,please contact our sales team or send email to sales@hkchipsource.com Hope we can cooperate in the future.

Specifications

Part Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 200mA
Voltage - Collector Emitter Breakdown (Max) 40V
Vce Saturation (Max) @ Ib, Ic 300mV @ 5mA, 50mA
Current - Collector Cutoff (Max) -
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 10mA, 1V
Power - Max 300mW
Frequency - Transition 300MHz
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email sales@hkchipsource.com or Inquires online
