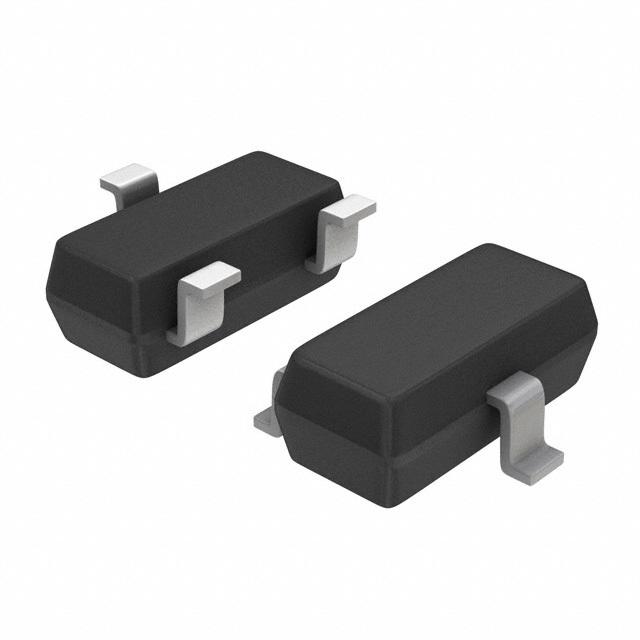

MMBT4401LT3G Images

MMBT4401LT3G Images are for reference only, See Product Specifications

MMBT4401LT3G

Part Number MMBT4401LT3G
Manufacturer ON Semiconductor
Description TRANS NPN 40V 0.6A SOT-23
Data sheet MMBT4401LT3G.pdf
Category Discrete Semiconductor Products
Family Transistors - Bipolar (BJT) - Single
Series -
Request a Quote

Buy the MMBT4401LT3G ON Semiconductor on Chip Source Co., LIMITED,we are ON Semiconductor Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the MMBT4401LT3G within 24 hours,please contact our sales team or send email to sales@hkchipsource.com Hope we can cooperate in the future.

Specifications

Part Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 600mA
Voltage - Collector Emitter Breakdown (Max) 40V
Vce Saturation (Max) @ Ib, Ic 750mV @ 50mA, 500mA
Current - Collector Cutoff (Max) -
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 150mA, 1V
Power - Max 300mW
Frequency - Transition 250MHz
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email sales@hkchipsource.com or Inquires online
