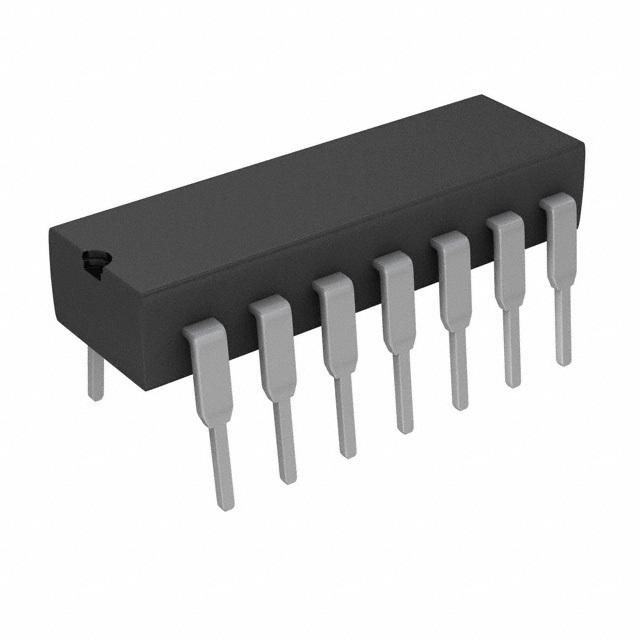

SN74S74N

Buy the SN74S74N Texas Instruments on Chip Source Co., LIMITED,we are Texas Instruments Corporation distributor,we sales new&original and offer 24 hours service,30 days warranty date, send the SN74S74N within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.
  • Manufacturer: Texas Instruments
  • Description: IC D-TYPE POS TRG DUAL 14DIP
  • Category: Integrated Circuits (ICs)
  • Family: Logic - Flip Flops
  • Series: 74S
Availability: In Stock
Please send RFQ , we will respond immediately.

Specifications

Part Status
Active
Function
Set(Preset) and Reset
Type
D-Type
Output Type
Differential
Number of Elements
2
Number of Bits per Element
1
Clock Frequency
110MHz
Max Propagation Delay @ V, Max CL
9ns @ 5V, 15pF
Trigger Type
Positive Edge
Current - Output High, Low
1mA, 20mA
Voltage - Supply
4.75 V ~ 5.25 V
Current - Quiescent
25mA
Input Capacitance
-
Operating Temperature
0°C ~ 70°C (TA)
Mounting Type
Through Hole
Package / Case
14-DIP (0.300", 7.62mm)
Shipment
UPS/EMS/DHL/FedEx Express.
Condtion
New original factory.
Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
