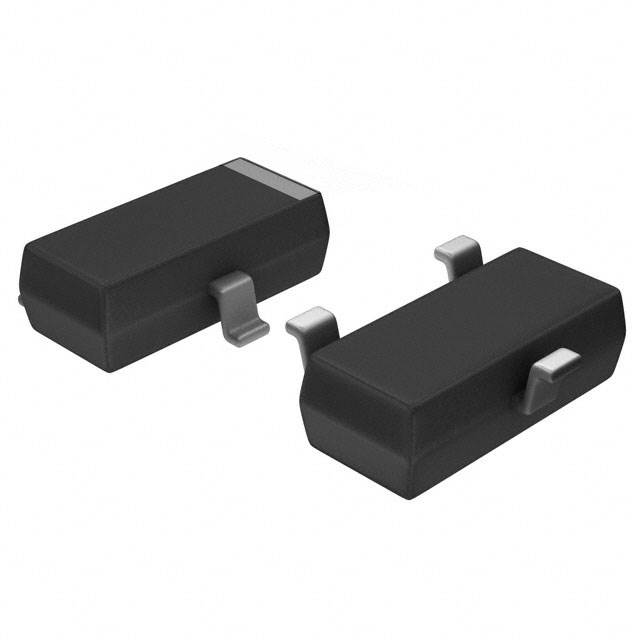

MMBD1504A Images

MMBD1504A Images are for reference only, See Product Specifications

MMBD1504A

Part Number MMBD1504A
Manufacturer Fairchild/ON Semiconductor
Description DIODE ARRAY GP 200V 200MA SOT23
Data sheet MMBD1504A.pdf
Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Arrays
Series -
Request a Quote

Buy the MMBD1504A Fairchild/ON Semiconductor on Chip Source Co., LIMITED,we are Fairchild/ON Semiconductor Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the MMBD1504A within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 1.1V @ 200mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) -
Current - Reverse Leakage @ Vr 10nA @ 180V
Operating Temperature - Junction 150°C (Max)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
