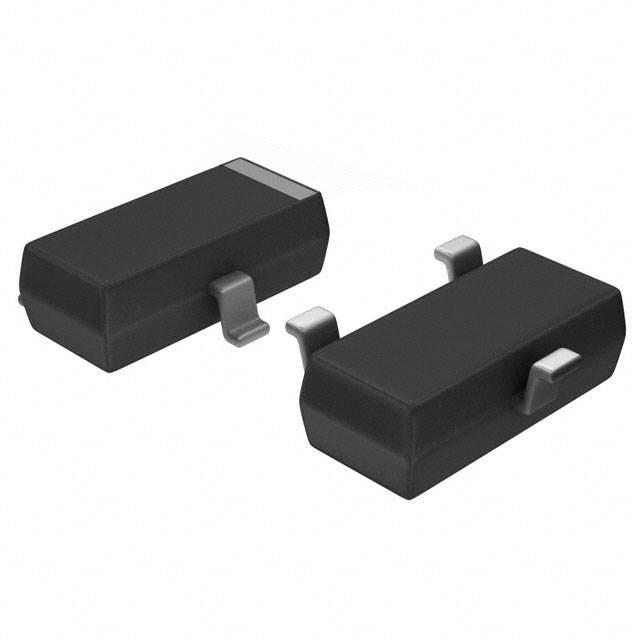

DB3X313F0L Images

DB3X313F0L Images are for reference only, See Product Specifications

DB3X313F0L

Part Number DB3X313F0L
Manufacturer Panasonic Electronic Components
Description DIODE ARRAY SCHOTTKY 30V MINI3
Data sheet DB3X313F0L.pdf
Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Arrays
Series -
Request a Quote

Buy the DB3X313F0L Panasonic Electronic Components on Chip Source Co., LIMITED,we are Panasonic Electronic Components Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the DB3X313F0L within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 550mV @ 200mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 1.5ns
Current - Reverse Leakage @ Vr 50µA @ 30V
Operating Temperature - Junction 125°C (Max)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package Mini3-G3-B
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
