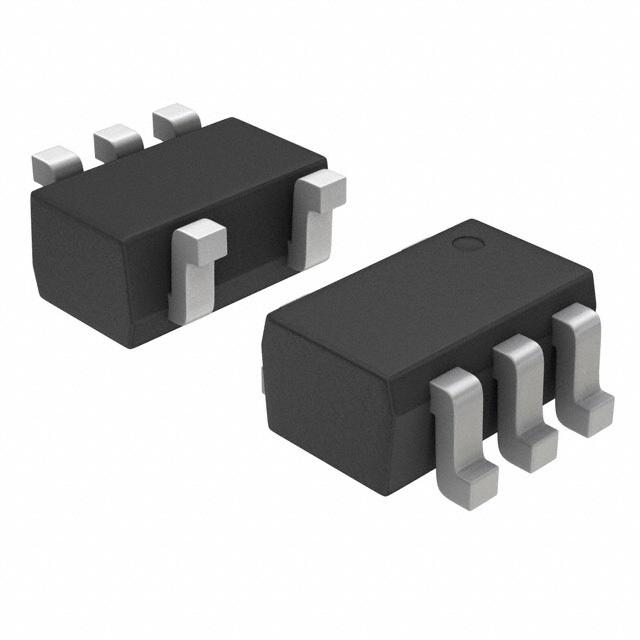

BAS21DW5T1G Images

BAS21DW5T1G Images are for reference only, See Product Specifications

BAS21DW5T1G

Part Number BAS21DW5T1G
Manufacturer ON Semiconductor
Description DIODE ARRAY GP 250V 200MA SOT353
Data sheet BAS21DW5T1G.pdf
Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Arrays
Series -
Request a Quote

Buy the BAS21DW5T1G ON Semiconductor on Chip Source Co., LIMITED,we are ON Semiconductor Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the BAS21DW5T1G within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Diode Configuration 2 Independent
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 250V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25V @ 200mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 100nA @ 200V
Operating Temperature - Junction 150°C (Max)
Mounting Type Surface Mount
Package / Case 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package SC-88A (SC-70-5 / SOT-353)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
