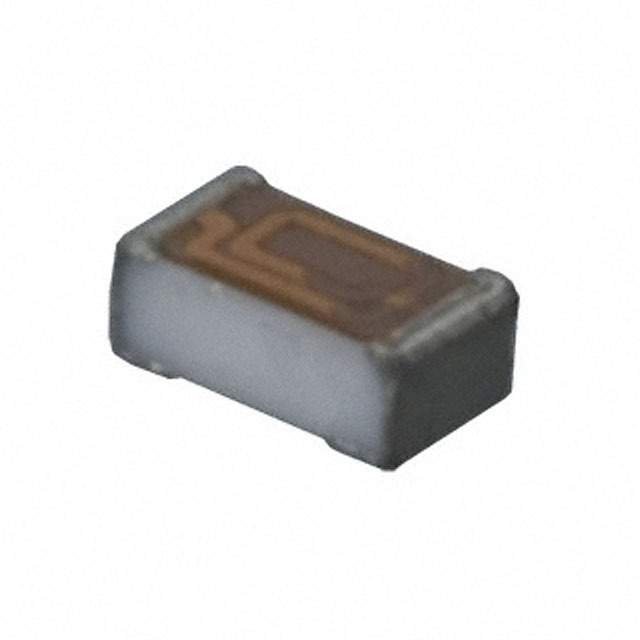

LQP15MN10NG02D Images are for reference only, See Product Specifications
| Part Number | LQP15MN10NG02D |
|---|---|
| Manufacturer | Murata Electronics North America |
| Description | FIXED IND 10NH 100MA 1.3 OHM SMD |
| Data sheet |  LQP15MN10NG02D.pdf |
| Category | Inductors, Coils, Chokes |
| Family | Fixed Inductors |
| Series | LQP15 |
Buy the LQP15MN10NG02D Murata Electronics North America on Chip Source Co., LIMITED,we are Murata Electronics North America Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the LQP15MN10NG02D within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.
| Part Status | Active |
|---|---|
| Type | Thin Film |
| Material - Core | Non-Magnetic |
| Inductance | 10nH |
| Tolerance | ±2% |
| Current Rating | 100mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.3 Ohm Max |
| Q @ Freq | 13 @ 500MHz |
| Frequency - Self Resonant | 4.5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Frequency - Test | 500MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
| RFQ Email | [email protected] or Inquires online |
