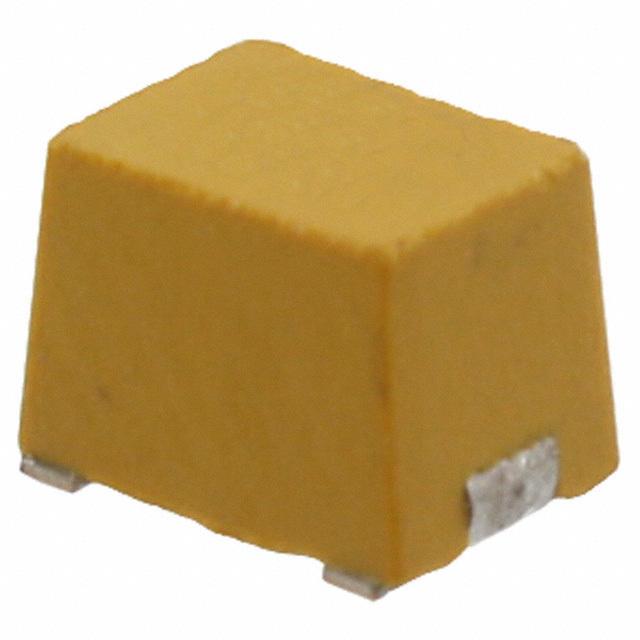

CBC2518T4R7M Images

CBC2518T4R7M Images are for reference only, See Product Specifications

CBC2518T4R7M

Part Number CBC2518T4R7M
Manufacturer Taiyo Yuden
Description FIXED IND 4.7UH 920MA 260 MOHM
Data sheet CBC2518T4R7M.pdf
Category Inductors, Coils, Chokes
Family Fixed Inductors
Series CB
Request a Quote

Buy the CBC2518T4R7M Taiyo Yuden on Chip Source Co., LIMITED,we are Taiyo Yuden Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the CBC2518T4R7M within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7µH
Tolerance ±20%
Current Rating 920mA
Current - Saturation 680mA
Shielding Unshielded
DC Resistance (DCR) 260 mOhm Max
Q @ Freq -
Frequency - Self Resonant 41MHz
Ratings -
Operating Temperature -40°C ~ 105°C
Frequency - Test 7.96MHz
Mounting Type Surface Mount
Package / Case 1007 (2518 Metric)
Supplier Device Package 1007 (2518 Metric)
Size / Dimension 0.098" L x 0.071" W (2.50mm x 1.80mm)
Height - Seated (Max) 0.079" (2.00mm)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
