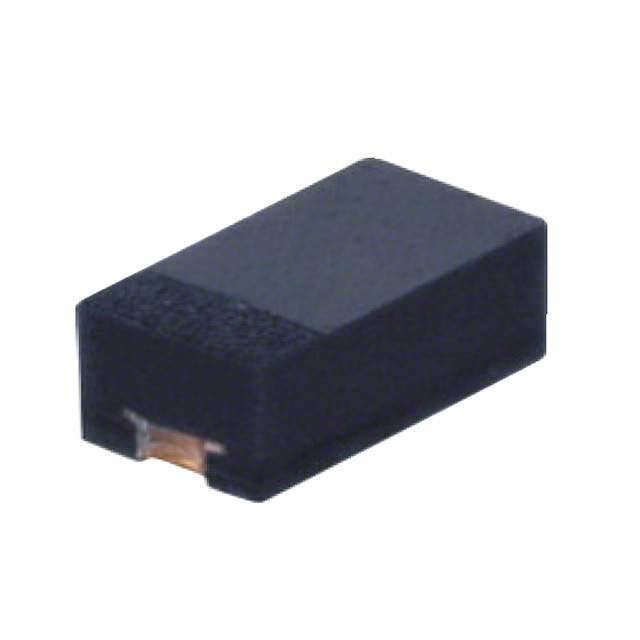

CDBU0520 Images

CDBU0520 Images are for reference only, See Product Specifications

CDBU0520

Part Number CDBU0520
Manufacturer Comchip Technology
Description DIODE SCHOTTKY 20V 500MA 0603
Data sheet CDBU0520.pdf
Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Single
Series -
Request a Quote

Buy the CDBU0520 Comchip Technology on Chip Source Co., LIMITED,we are Comchip Technology Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the CDBU0520 within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 470mV @ 500mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) -
Current - Reverse Leakage @ Vr 100µA @ 20V
Capacitance @ Vr, F 100pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Supplier Device Package 0603/SOD-523F
Operating Temperature - Junction 125°C (Max)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
