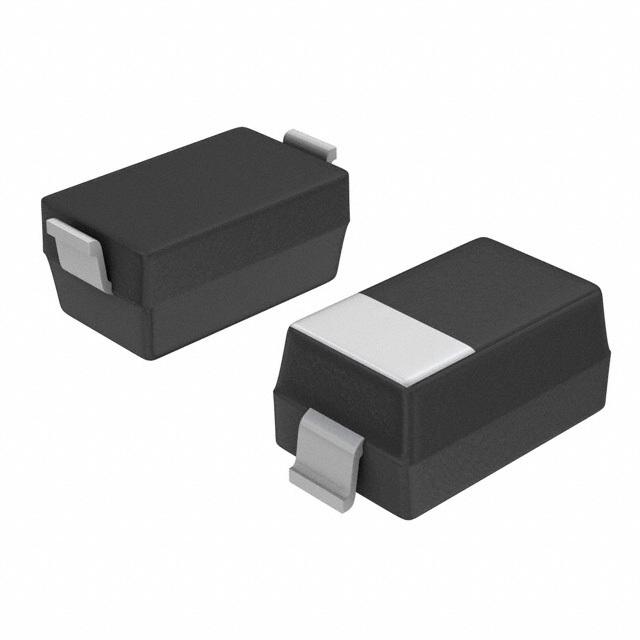

MBR130T1G Images are for reference only, See Product Specifications
| Part Number | MBR130T1G |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | DIODE SCHOTTKY 30V 1A SOD123 |
| Data sheet |  MBR130T1G.pdf |
| Category | Discrete Semiconductor Products |
| Family | Diodes - Rectifiers - Single |
| Series | - |
Buy the MBR130T1G ON Semiconductor on Chip Source Co., LIMITED,we are ON Semiconductor Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the MBR130T1G within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.
| Part Status | Active |
|---|---|
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 450mV @ 700mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 60µA @ 30V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | -65°C ~ 125°C |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
| RFQ Email | [email protected] or Inquires online |
