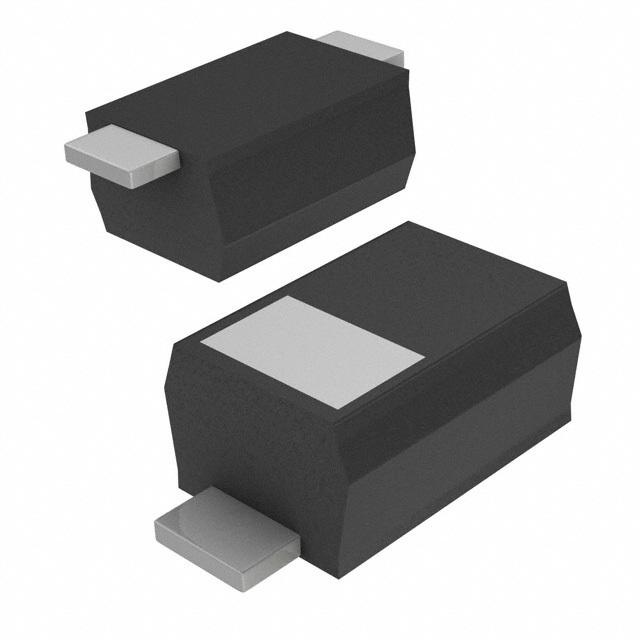

SMD1200PL-TP Images

SMD1200PL-TP Images are for reference only, See Product Specifications

SMD1200PL-TP

Part Number SMD1200PL-TP
Manufacturer Micro Commercial Co
Description DIODE SCHOTTKY 200V 1A SOD123FL
Data sheet SMD1200PL-TP.pdf
Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Single
Series -
Request a Quote

Buy the SMD1200PL-TP Micro Commercial Co on Chip Source Co., LIMITED,we are Micro Commercial Co Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the SMD1200PL-TP within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 950mV @ 1A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) -
Current - Reverse Leakage @ Vr 500µA @ 200V
Capacitance @ Vr, F 30pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123FL
Operating Temperature - Junction -55°C ~ 125°C
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
