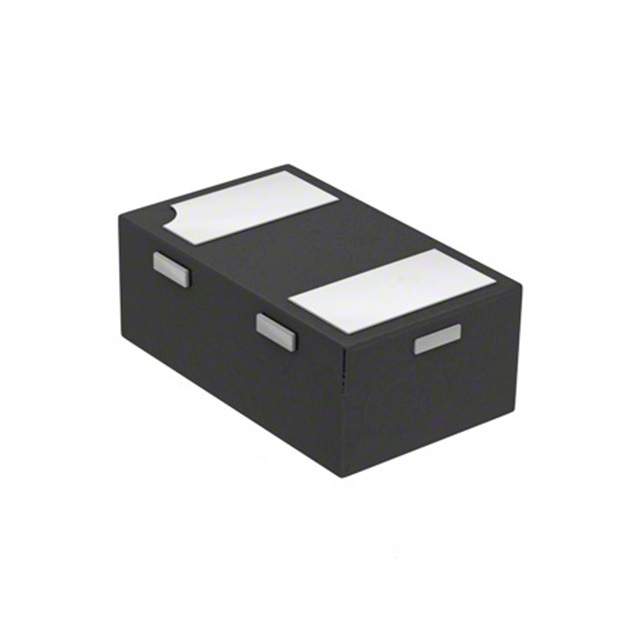

BAT54LP-7 Images

BAT54LP-7 Images are for reference only, See Product Specifications

BAT54LP-7

Part Number BAT54LP-7
Manufacturer Diodes Incorporated
Description DIODE SCHOTTKY 30V 200MA 2DFN
Data sheet BAT54LP-7.pdf
Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Single
Series -
Request a Quote

Buy the BAT54LP-7 Diodes Incorporated on Chip Source Co., LIMITED,we are Diodes Incorporated Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the BAT54LP-7 within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2µA @ 25V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case 2-UFDFN
Supplier Device Package X1-DFN1006-2
Operating Temperature - Junction -65°C ~ 125°C
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
